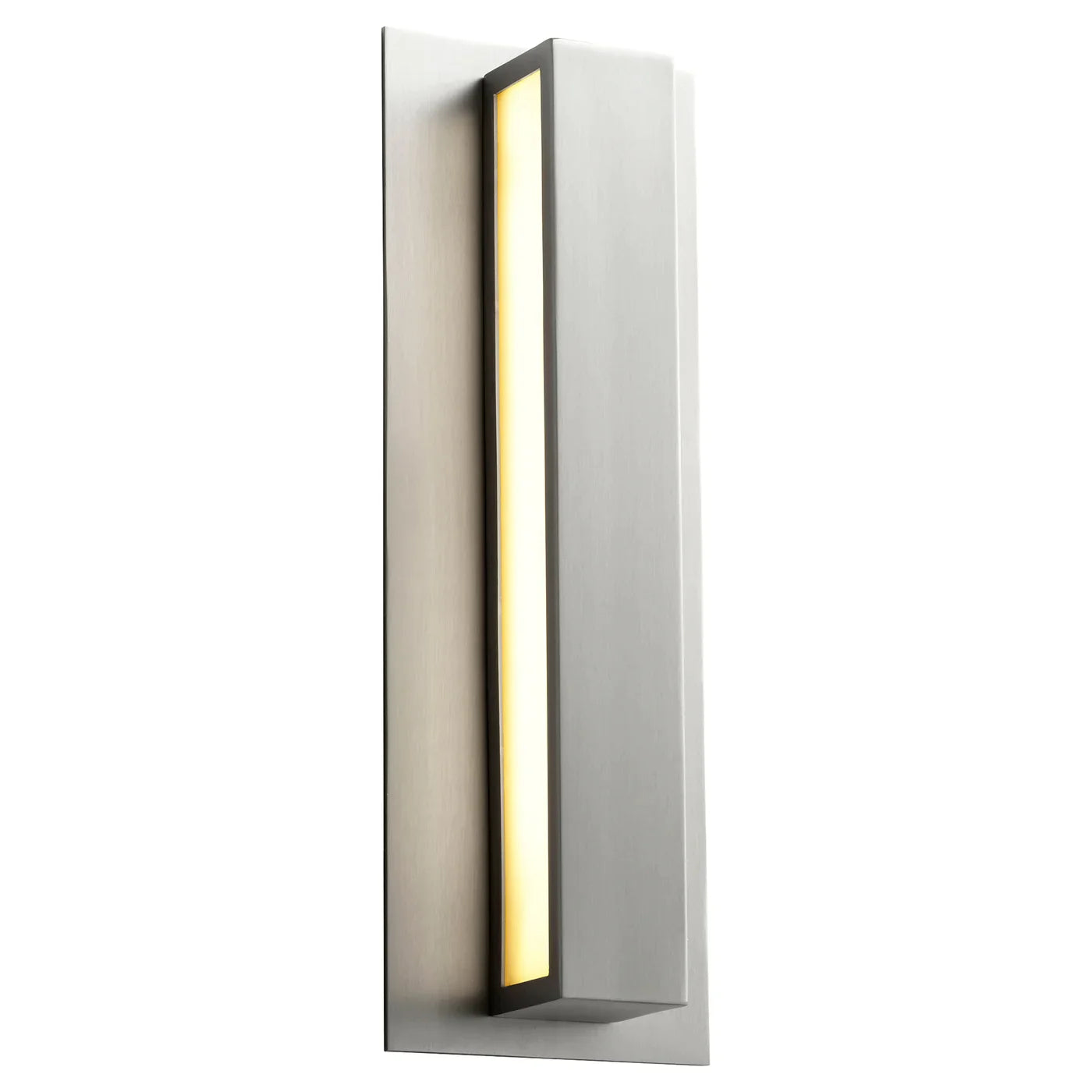

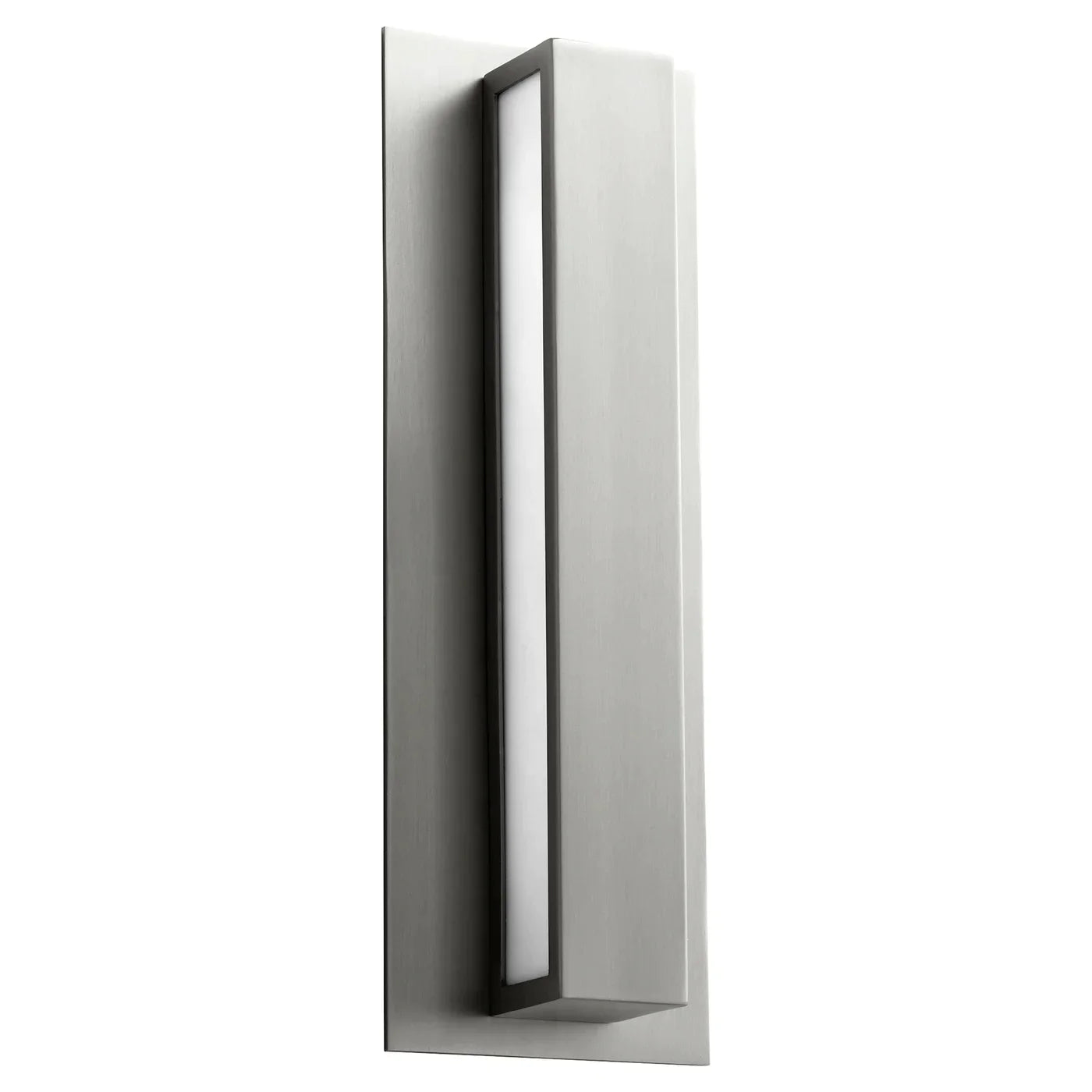

Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel

Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel

SKU:3-532-24

In stock

Regular price $258.00
Regular price $344.00 Sale price $258.00
Sale Sold out

Oxygen Lighting Alcor 3-532-24 Wall Sconce LED Light Fixture 3000K CCT, ADA Compliant, UL Damp Rated - Satin Nickel finish. Please refer to the Spec Sheet for all product specifications. Oxygen Lighting MPN 3-532-24

  • Dimensions: 13"(w) x 4.5"(h) x 2"(ext)
  • Weight: 4.01 lbs.
  • Finish: Satin Nickel - Matte White Acrylic Diffuser
  • Light Source: One 6.3 Watt LED Array 90CRI 3000k
  • Total Input Voltage & Wattage: 120V-277V / 14.7W
  • Lumens: 388 lm
  • Dimming: TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 1% current output
  • Mounting: Unit mounts to a 4” Octagonal J-Box, 4” Square J-Box with a single device mud ring/ Deep J-Box ( Required to house driver)
  • Location Rating: Damp
  • Fixture Options: Option available to add room numbers. Contact your Sales Rep for details | Extend backplate on one side
View full details
Your cart
Product Product subtotal Quantity Price Product subtotal
Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel
Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel3-532-24
Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel3-532-24
Regular price
$344.00
Sale price
$258.00/ea
$0.00
Regular price
$344.00
Sale price
$258.00/ea
$0.00

Electrical and Operational Information

Bulb Included: Yes
Electricity Used: 11.9
ES Lamp Included: No
Max Wattage: 11.9 W
Number of Bulbs: 1
Socket Type: Array
Voltage: 120 V-277 V

Dimensions and Measurements

Extension: 2
Ship Carton Height: 7.25
Ship Carton Length: 4.5
Ship Carton Width: 15.5
Weight: 4.01

Additional Details

Cartons Per Unit: 1
Category: Sconce
Energy Saving: No
Energy Star: No
Family: Alcor
Finish: Satin Nickel
Freight Only: No
Inner Pack: 1
Introduction Date: 04/01/2016
Location Rating: Damp Rated
Master Pack: 6
Parcel: Yes
Safety Rating: UL Approved

Looking for specific info?

Have a Question?

Ask a Question
  • Do you have a Spec Sheet for the Oxygen Alcor 3-532-24 Wall Sconce LED Light Fixture, ADA Compliant - Satin Nickel? I could not find it on the web page.

    Hello, Click Here for the Spec Sheet. Let us know if you have more questions.
