SKU:3-103-22

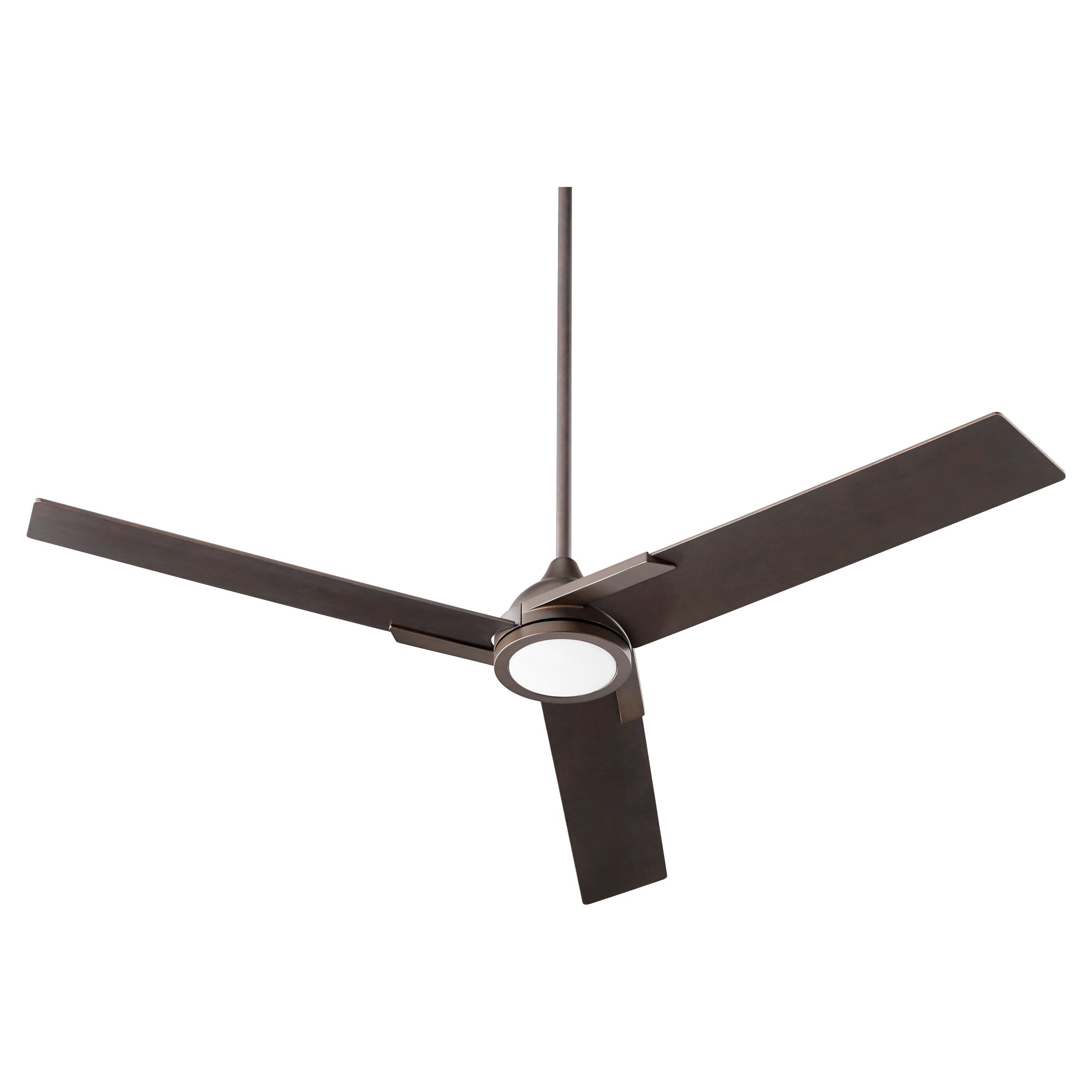

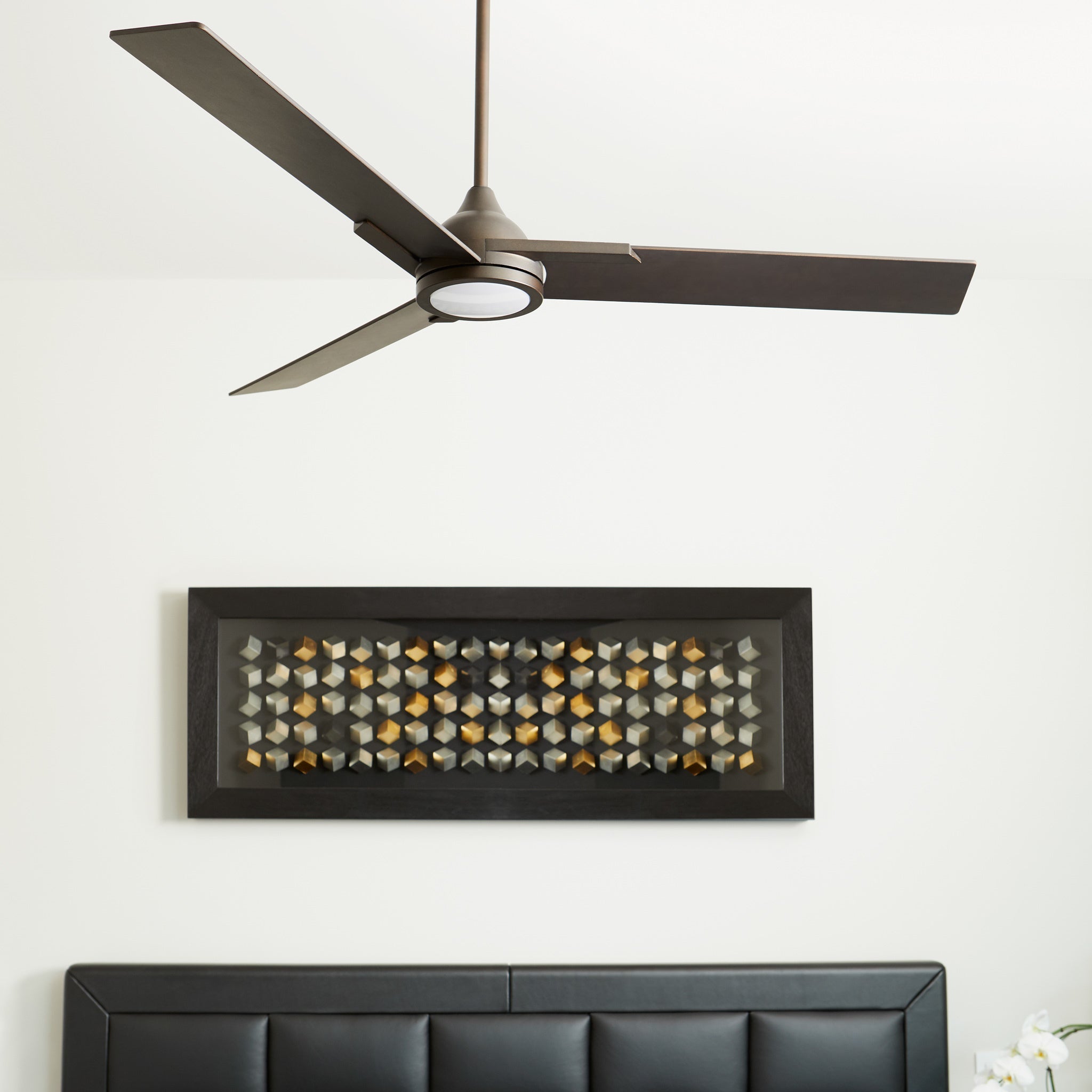

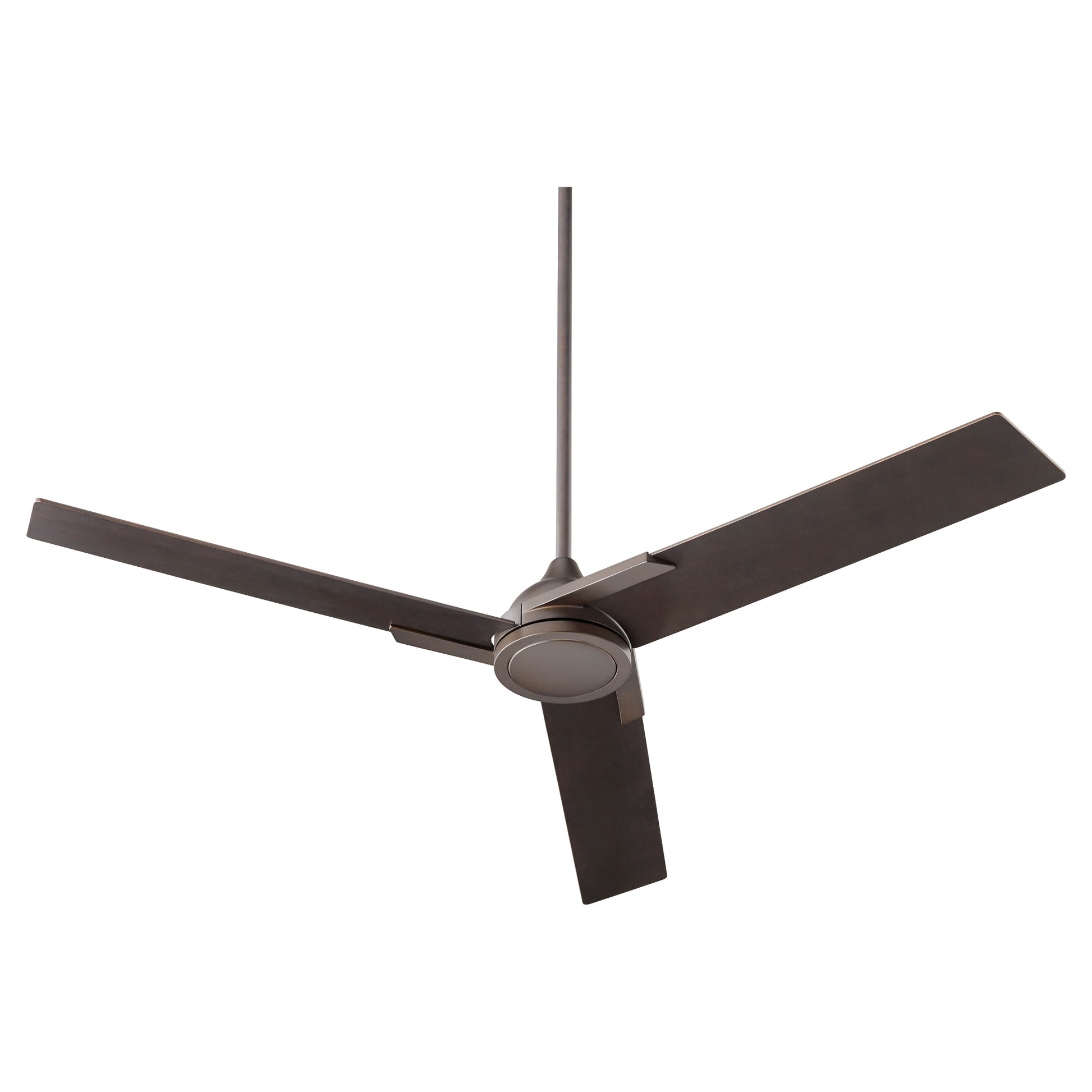

Oxygen Coda 3-103-22 Indoor Ceiling Fan 56 Inch - Oiled Bronze
Oxygen Coda 3-103-22 Indoor Ceiling Fan 56 Inch - Oiled Bronze
99 in stock
Couldn't load pickup availability
Oxygen Coda 3-103-22 Ceiling Fan - Oiled Bronze CODA 56" 3BL FAN - OB Oxygen Coda 3-103-22
- Dimensions: 56" Blade Sweep. 13.5-Degree Blade Pitch. 80" Lead Wire. 4.5" Downrods, Overall Fan Height: 11.5
- Finish: Oiled Bronze
- Weight: 13.8 lbs
- Total Input Voltage & Wattage: 120V / 3-28W
- Mounting: 4.5" Downrod (Included)
- Location Rating: Dry
- Motor Size & Motor Type: 120mm DC Motor
- Blade Pitch: 13.5
- Controls: 6 Speed Reversible with Wall Control (Optional Remote 3-8-3000)
- LED Light Kit: Optional (3-9-102)
Authorized Dealer
Authorized Dealer
Oxygen Lighting & Fan Shop is an Authorized Dealer of Quorum International brands: Oxygen Lighting, Quorum & Cyan Design since 2014
Share
Looking for specific info?
Have a Question?
-
Hi there, I need a hanging ball mount downrod assembly for the Coda ceiling fan would it be possible for me to purchase this somewhere, or is it possible to use a third party downrod for installation? Thanks so much for your time and help. Oxygen Coda MODEL: PL56-3-L SKU: 3-103-6
Hello, the Oxygen Coda fans use a 1/2 Inch inside diameter downrod. Click HERE for all sizes and finishes.
https://oxygen.lighting/products/oxygen-fan-downrod-ceiling-fans-downrods?_pos=1&_psq=3-6-xx&_ss=e&_v=1.0&variant=42296037048460
| Product Specifications | |
|---|---|
| Category | Ceiling Fan |
| Finish | Oiled Bronze |
| Family | Coda |
| Voltage | 120 V |
| Amperage | 0.45/0.08 |
| Blade Span | 56 |
| Electricity Used | 18 |
| Introduction Date | 04/01/2018 |
| Motor RPM | 169/74 |
| Motor Size | 120DC x 15mm |
| Ship Carton Height | 9.5 |
| Ship Carton Length | 28 |
| Ship Carton Width | 9.25 |
| Warranty | Limited Lifetime |
| Weight | 13.8 |
| Arm Pitch | 13.5 |
| Blade Side A Color | Oiled Bronze |
| Blade Side B Color | Oiled Bronze |
| Bulb Included | No |
| Cartons Per Unit | 1 |
| Ceiling to Lower Edge of Blade | 9.13 |
| CFM | 3815 |
| Downrod Length 1 | 4.5 |
| Energy Saving | No |
| Energy Star | No |
| ES Lamp Included | No |
| Fan Watts | 18 |
| Freight Only | No |
| Location Rating | Dry Rated |
| Master Pack | 1 |
| Motor Lead Wire | 80 |
| Motor Poles | 8 |
| Number of Blades | 3 |
| Number Of Speeds | 3 |
| Overall Fan Height | 11.52 |
| Parcel | Yes |
| Reversible | Yes |
| Safety Rating | UL Approved |
| Sweep | 56 |
