    Oxygen Pilar 3-653-40 Large Pendant with Acrylic Lens 3000K Modern - Aged Brass

    Oxygen Lighting

    3-653-40

    Regular price
    Shipping calculated at checkout.
    89 In stock, ready to ship, leaves the warehouse in 3-5 days

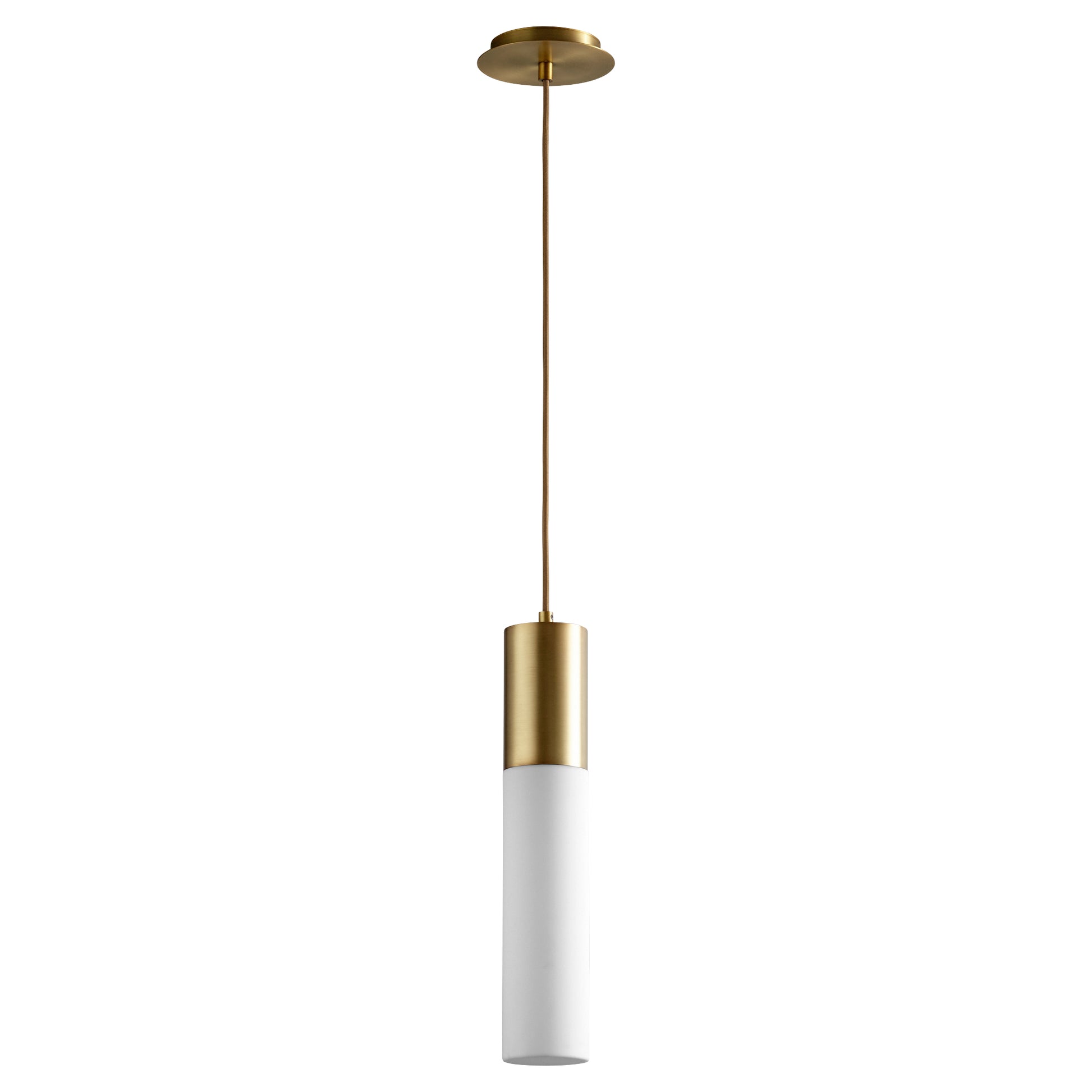

    Oxygen Pilar 3-653-40 Large Pendant with Acrylic Lens 3000K Modern - Aged Brass

    Oxygen Pilar 3-653-40

    PILAR Acrylic Pendant -3000k- Aged Brass
    SKU: 3-653-40
    UL - Damp

    This fixture is available in additional color temperatures | 2700k, 3000k, 3500k & 4000k

    Finish: Aged Brass

    Weight: 5.32 lbs

    Light Source: One 5.1 Watt LED Array 90CRI 3000k

    Total Input Voltage & Wattage: 120V-277V / 7.2W

    Lumens: 383 lm

    Dimming: TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 1% current output

    Mounting: Unit mounts to a 4” Octagonal J-Box, 4” Square J-Box with single device mud ring/ Deep J-Box ( required to house driver )/ Fixture supplied with 10” braided cord to customize hanging height / Optional Multi-Point canopies available

    Location Rating: Damp

    DIMENSIONS
    Dia. Canopy: 5.88”
    Dia. Fixture: 3.50”
    H. Fixture: 18.00”
    Supplied with 10 ft braided cord



    Technical Documents & Files


    Specification Sheet  Revit File  Photometrics
    Attribute Value
    Category Pendant
    Finish Aged Brass
    Family Magnum
    Voltage 120 V
    Number of Bulbs 1
    Bulb Type LED
    Electricity Used 5.1
    Introduction Date 04/01/2017
    Kelvin 3000
    Ship Carton Height 9.25
    Ship Carton Length 32.75
    Ship Carton Width 9.25
    Weight 5.32
    Bulb CRI 90
    Bulb Included Yes
    Cartons Per Unit 1
    Country of Origin China
    Diffuser Material Acrylic
    Energy Saving No
    Energy Star No
    ES Lamp Included No
    Freight Only No
    Location Rating Dry Rated
    Master Pack 1
    Max Wattage 5.1 W
    Parcel Yes
    Safety Rating UL Approved
    Shade Color Matte White
    Socket Type Array
